Overview

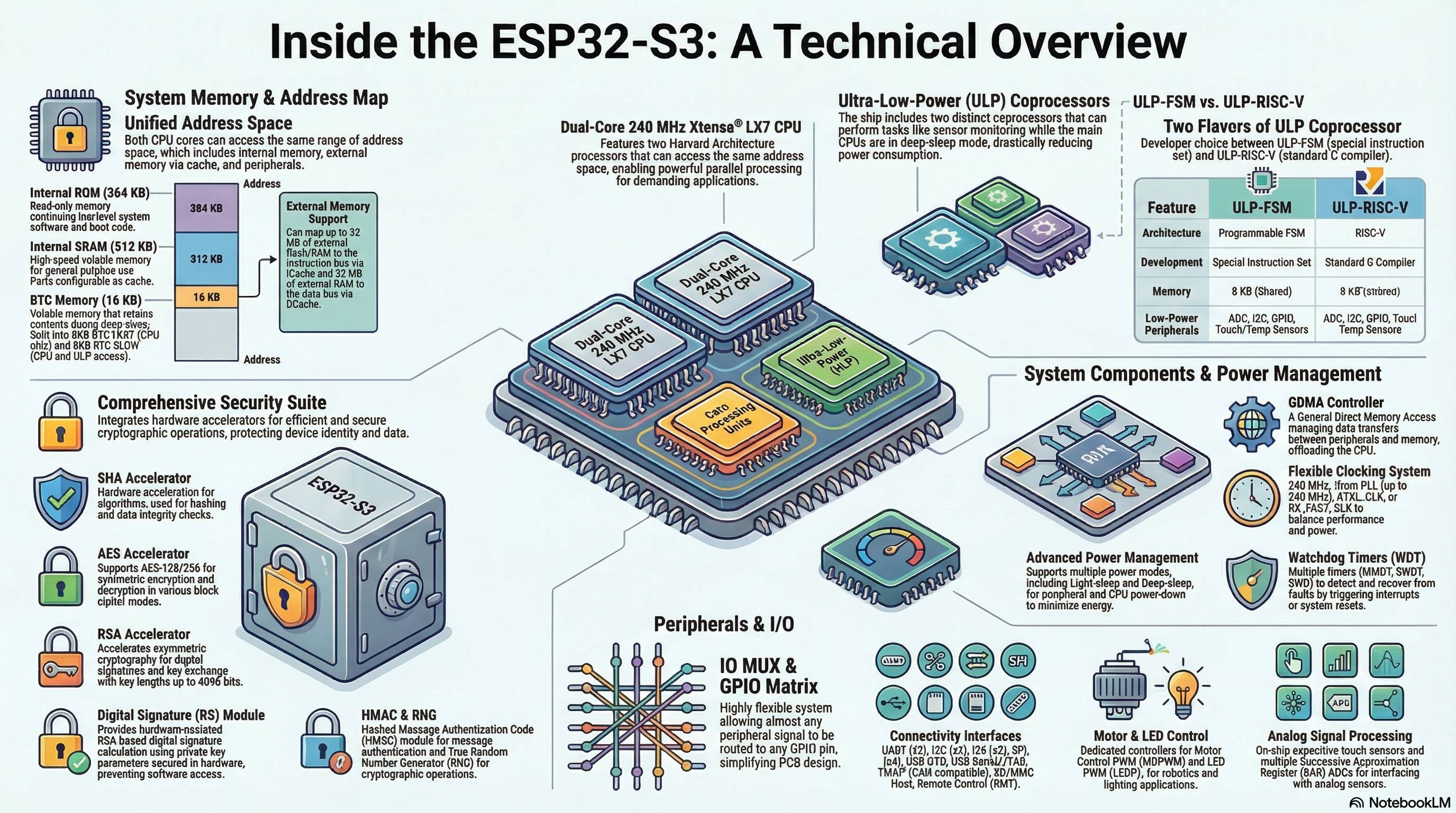

Inside the ESP32-S3: A Technical Overview infographic showing system architecture including memory map, dual-core CPU, ULP coprocessors, security suite, peripherals, and power management

Reference infographic: ESP32-S3 Technical Overview. Tap to zoom.

1
What is the ESP32-S3?

The is a System-on-Chip () designed by Systems. It combines a powerful dual-core processor with built-in and connectivity, making it ideal for IoT applications.

Unlike a traditional CPU that needs external components, an integrates the processor, memory, wireless radios, and peripherals into a single chip. This reduces cost, power consumption, and complexity.

The "S3" variant adds AI acceleration capabilities through vector instructions, making it suitable for edge computing tasks like voice recognition and image processing.

Key Points

  • ▸Dual-core processor running at 240 MHz
  • ▸512 KB internal , 384 KB
  • ▸Built-in 802.11 b/g/n and .0 LE
  • ▸45 programmable pins
  • ▸Hardware security accelerators (, , )
  • ▸Vector instructions for AI/ML workloads
2
Development Options

The supports multiple development approaches:

  • • - 's official development framework with build system and extensive libraries
  • • - Simplified C++ for rapid prototyping
  • •/ - Python interpreters running directly on the chip
  • • - A real-time operating system providing tasks, mutexes, and message queues

The development experience includes package managers, testing frameworks, and (over-the-air) updates.

Key Points

  • ▸ is recommended for production applications
  • ▸ provides familiar syntax for beginners
  • ▸ enables rapid iteration without compilation
3
The M5Stack CoreS3 Platform

The is a built around the . It packages the chip with:

  • •2-inch touchscreen (320x240) - For GUI development
  • •6-axis () - +
  • •Proximity sensor - For gesture detection
  • • - compatible
  • • - For programming and power
  • • connectors - Standardized / expansion
  • • battery support - Portable operation

This is your hardware development platform—complete and ready to use out of the box.

Key Points

  • ▸Complete development platform - no soldering required
  • ▸Extensive library support from
  • ▸ ecosystem for easy sensor integration

Knowledge Check
